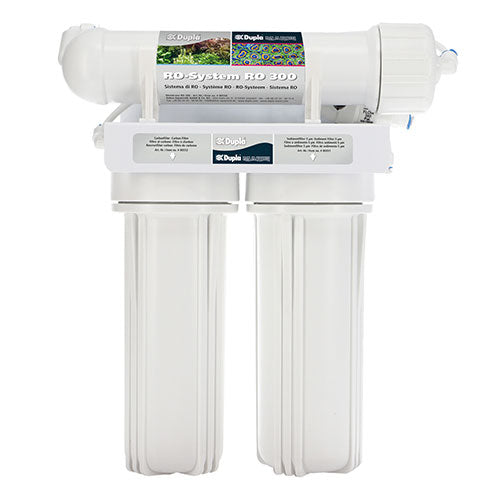

Dupla RO 300 osmosis system Max. output 300 l / day
Reverse osmosis systems create optimal starting water for sea and freshwater aquariums. Many water problems can often only be solved by using reverse osmosis water. Reverse osmosis systems work on the principle of physical filtering. Unlike ion exchangers, for example, which exchange hardness-forming ions (e.g. calcium) for other, non-hardness-forming ions (e.g. sodium), pollutants (e.g. silicate, nitrate) and hardness-forming agents are physically removed from the water in a reverse osmosis system. The water in the reverse osmosis system runs through a semi-permeable (semi-permeable) membrane under the pressure of 2 - max. 6 bar in standard household water pipes. The substances dissolved in the water (pollutants, salts or hardeners) cannot pass through the small lattice structure of the membrane and remain in the residual water. This residual water is discharged as a concentrate and can be safely used as cleaning, watering or utility water. Dupla reverse osmosis systems have a maximum retention rate of 95 - 98% of all pollutants in tap water.
Scope of delivery:
- RO 300 completely assembled with sediment filter (5 µm fine filter), carbon filter and membrane
- 3 x 2m hose
- 3/4 inch faucet connection
- Flow rate limiter with integrated flushing valve
- Wall mount
- Hose plug
- Housing key for filter and membrane housings
- operation manual
Technical data:
Max. output 300 l / day, depending on the quality of the starting water
Average output 220 - 300 l / day at 8 - 15° C and 3 - 6 bar pressure
Average retention rate 95 - 98%
Aluminum 97 - 98%
Cadmium 95 - 98%
Bacteria 99%
Nitrates max. 90%
Silicates max. 90%
Sulfates 97 - 98%
Hardness builder 95 - 98%
Ratio concentrate: permeate 4: 1 / 3: 1 depending on the quality and pressure of the starting water.
Ratio conductivity tap water: permeate
| 1,000 µS |
to 50 µS |
| 300 µS |
to 15 µS |
Ratio conductivity tap water: permeate with a downstream Dupla ultrapure water filter
| 1,000 µS |
to 1 µS |
| 300 µS |
to 1 µS |
Spare Parts:
- 80550 Replacement membrane RO 300
- 80551 Replacement filter sediment filter (5 µm fine filter) RO 300
- 80552 Replacement filter Carbon RO 300
- 80549/6 Flow limiter with flushing valve RO 300
- 80545/7 Sealing ring set for membrane housing RO 200 / 300
- 80519 3/4 inch tap water connection
- 80549/11 Key membrane housing RO 300
- 80549/7 Seal filter housing RO 300
