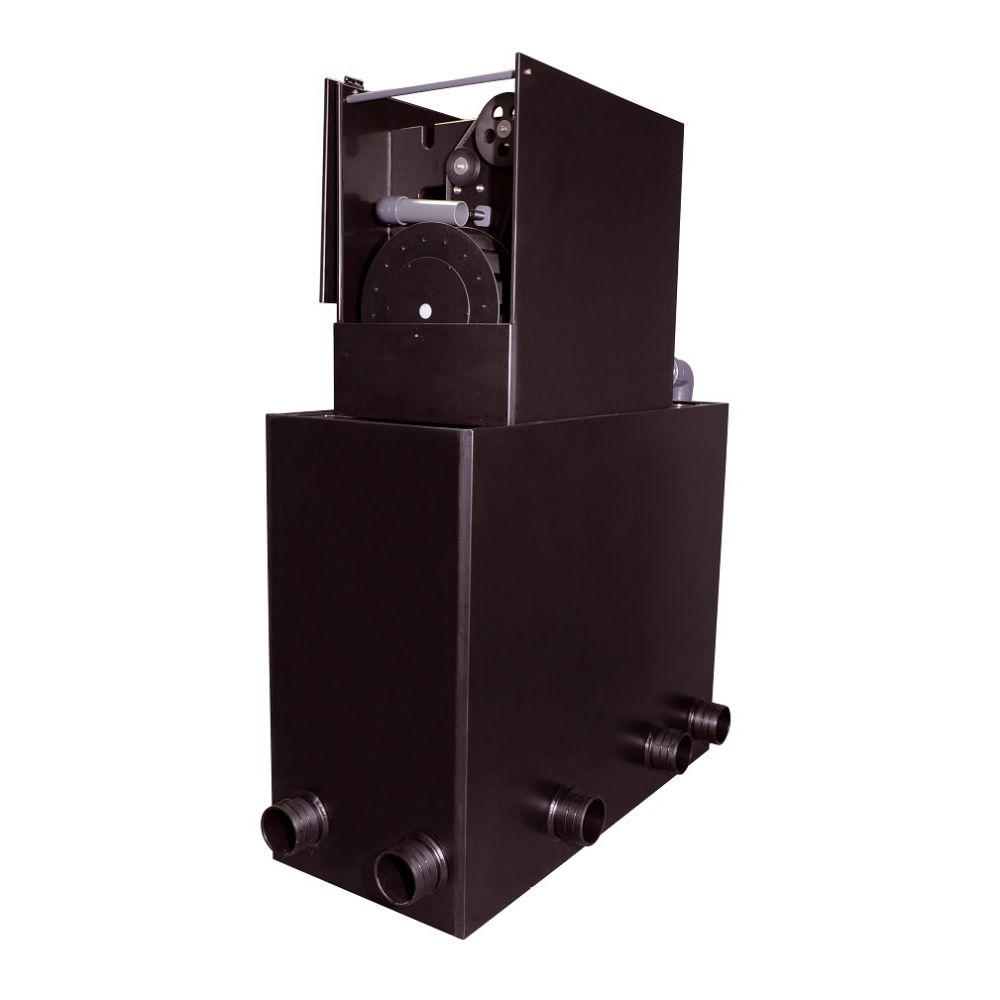

EVO TTC 500L pond technology center with filter system EVO3/500L and undermount tray.
How it works
The contaminated water is forced by the natural water pressure (suction via floor drains) into the first chamber (pump chamber), in which the EVO BLUE STREAM pump is located. The suction basket provides the pump with excellent protection from larger dirt particles. It pumps the unpurified water directly into the EVO3/500L filter. After filtration, the water is fed back into the pond via the second chamber (return chamber) without bubbles.
| Pond size |
up to 20,000 l |
| water flow |
15,000 l/h |
| Koi stocking |
30kg |
| Dimensions L x W x H |
1200x530x1720mm |
| item number |
I-TTC |
