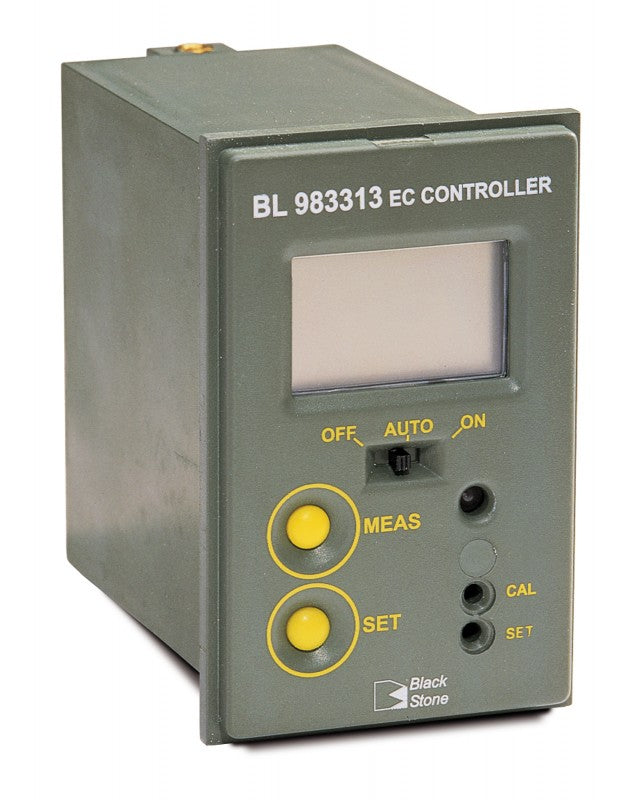

Product information "BL983313-0 Conductivity mini controller, 0 to 1999 µS/cm, 12V"
With the BL series mini controllers, HANNA Instruments offers an attractively priced solution for process control. In a mini-format housing (8 x 5 cm) and very easy to operate, they guarantee precise and reliable continuous controls. Model BL 983313-0 for conductivity has a measuring range up to 1999 µS/cm and 2 control points.
- Scope of delivery: controller including retaining clips. Electrodes must be ordered separately.
- Small housing - space-saving and can be installed anywhere
- Easy to read display
- Easy operation and maintenance
- Front colored LED to display the operating status (measuring, dosing or alarm mode)
- 2 rule points
- Protection against overdose through adjustable time-controlled relay
- Variable limit value over the entire measuring range
- Measuring probe grounding to protect the probe
- With 12VDC adapter
Specifications:
|
Measuring range
|
0 to 1999 µS/cm
|
| resolution
|
1 µS/cm
|
| accuracy
|
±2% of measuring range
|
| calibration
|
Manual, 1 point
|
| Temperature compensation
|
Automatic, from 5 to 50°C with ß=2%/°C
|
| Dosing relay
|
1, closed measured value > limit value
|
| Variable limit
|
0 to 1999 µS/cm
|
| Adjustable relay activity
|
5-30 mins |
| probe
|
HI 7634-00 conductivity probe, integrated temperature sensor, 2 m cable (optional)
|
| Power supply
|
12VDC adapter
|
| Dimensions
|
79x49x95mm
|
| Weight
|
200 g
|
